Cork Plus Underlayment
Home / Shop / Products / Underlayment
- Description
- Specifications
- Compatible with tile, stone, engineered hardwood and laminate floors, and may be installed with common flooring adhesives, thinset and mortars
- Constructed of natural cork and recycled EVA foam, making it more flexible and less to prone to breakage than standard cork underlayment
- Resists the transfer of stress cracks from subfloor through to flooring surfaces
- Provides acoustical sound control and cushioning for softer, quieter footfalls
- Easy to install on and above grade in both glue-down and floating floor installations
- Naturally antimicrobial, as well as mold and mildew resistant
- Reduces thermal transmission, increasing the effectiveness of floor heating systems
- 200 sq. ft. roll measures 4 ft. wide x 50 ft. long x 6 mm thick
- Delta rating of 22
- IIC rating of 63 and STC rating of 61 under ceramic tile
- IIC rating of 52 and STC rating of 51 under engineered hardwood floors
- Instructions and specifications can also be downloaded for more information
Product Data Sheet
Installation Instructions| 72019 | 72019-25 | |
| Coverage: | 30 sq ft | 150 sq ft |
| Sheet Size: | 2' x 3' | 2' x 3' |

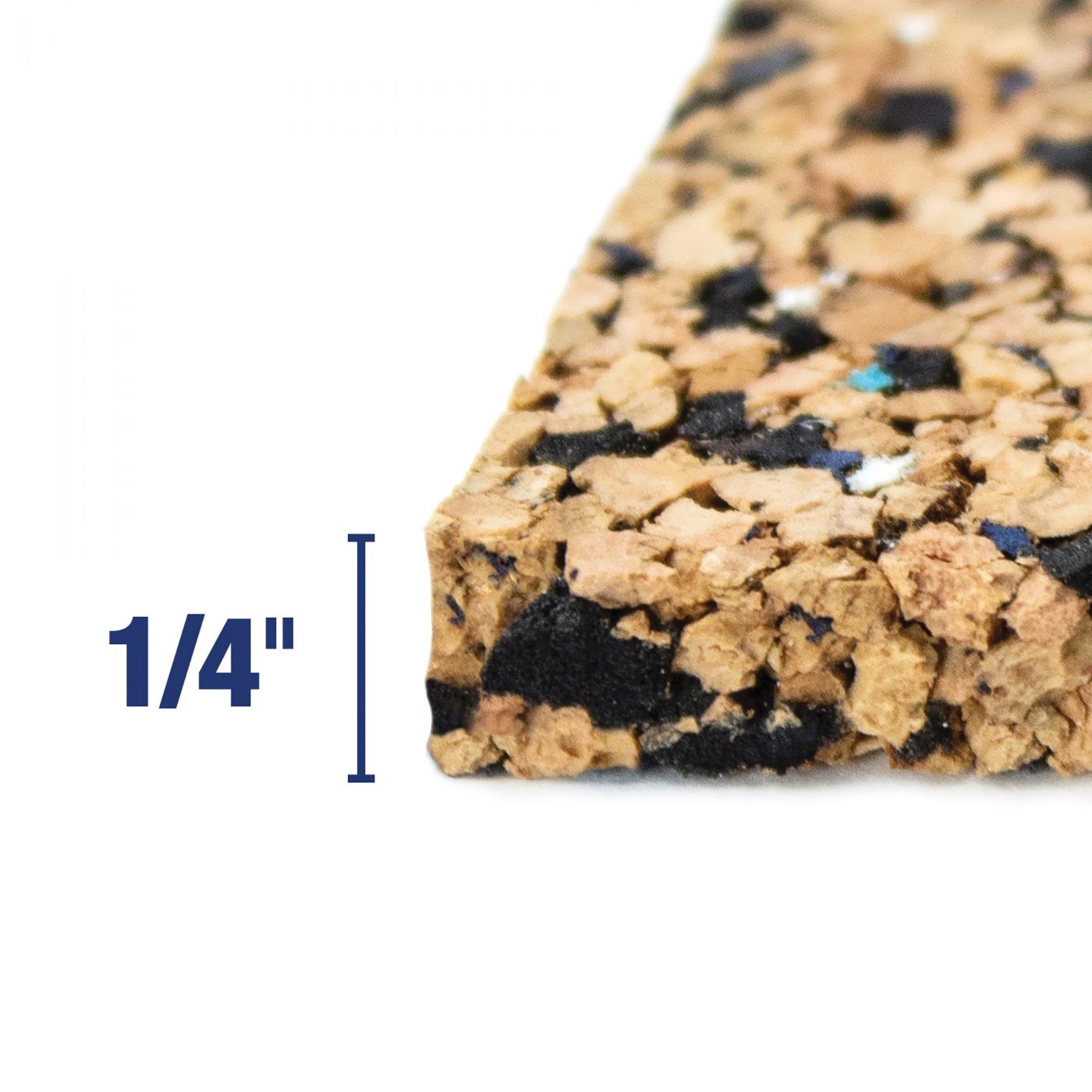

| Thickness: | 1/4" (6mm) | 1/4" (6mm) |
| Quantity: | 5 sheets | 25 sheets |
| Sound Ratings:(Engineered wood on a 6" cement slab) | IIC 52 / STC 51 / ∆ 22 | IIC 52 / STC 51 / ∆ 22 |
| Sound Ratings: (Ceramic tile on a 6" concrete slab with a suspended ceiling) | IIC 63 / STC 61 / ∆ 22 | IIC 63 / STC 61 / ∆ 22 |
IIC and STC tests measure sound transference from an upper level room to a lower level room. The IIC measures sound such as moving furniture and walking, while the STC measures sound such as voices and television. Minimum sound rating required by most building codes and architects is 50. ∆ Delta Rating is the only true measurement of sound reduction from a product (not a floor assembly).
