31" KATANA SR-31 Single Rail Tile Cutter
New

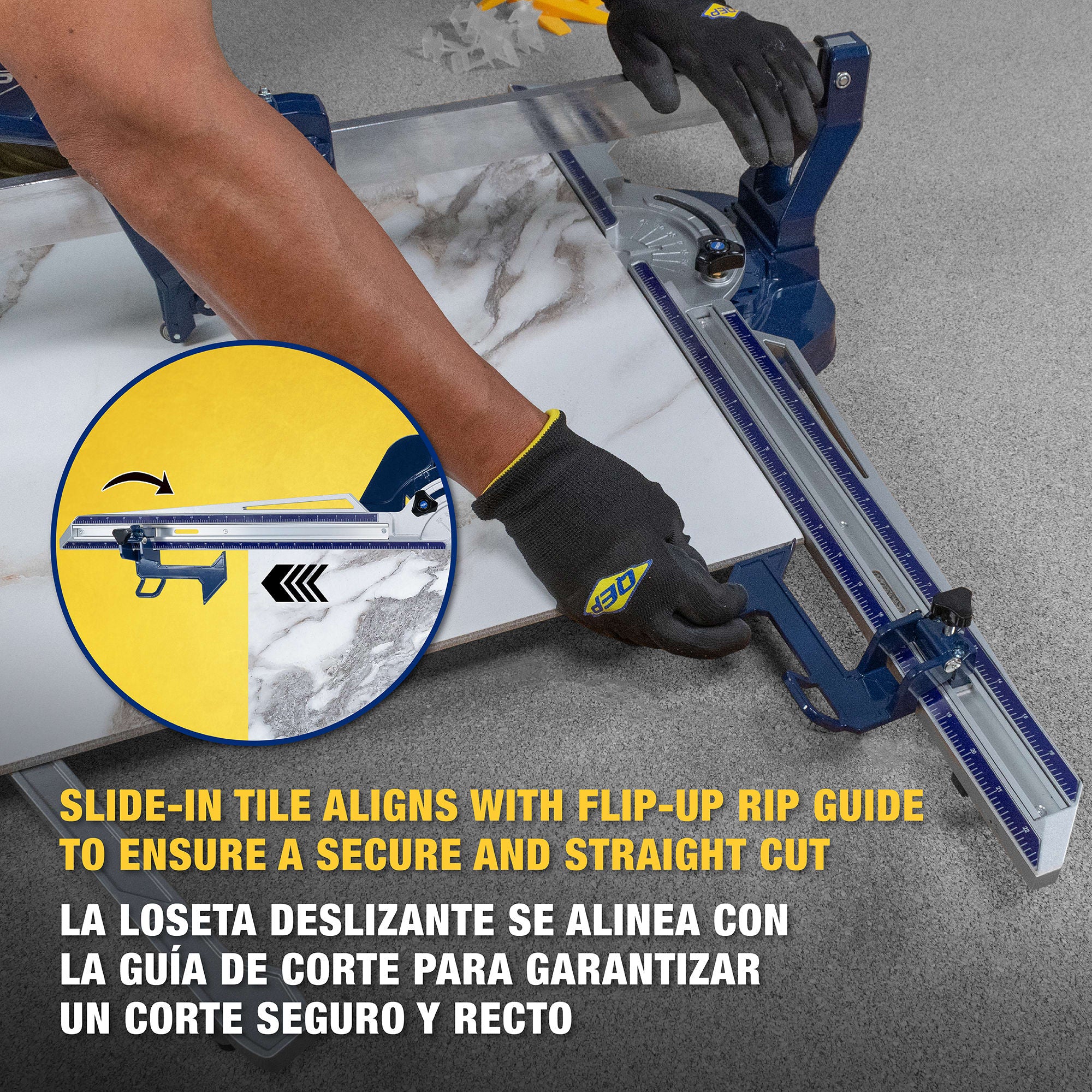

QEP® KATANA™ Single Rail Tile Cutters are designed to deliver smooth cutting for all types of tile. This professional Series of tile cutters includes the SR-31 and SR-41, both featuring an adjustable fence with positive stops at 22.5, 45, and 90 degrees. A preferred choice of professional installers, the KATANA™ Single Rail Tile Cutters are manufactured with a heavy-duty cast aluminum base, an extended handle for maximum breaking power, an adjustable flip-up rip guide, and full-length 20" side wing support arms to eliminate tile sag. Replacement scoring wheel Model # 21131 sold separately.
Features:

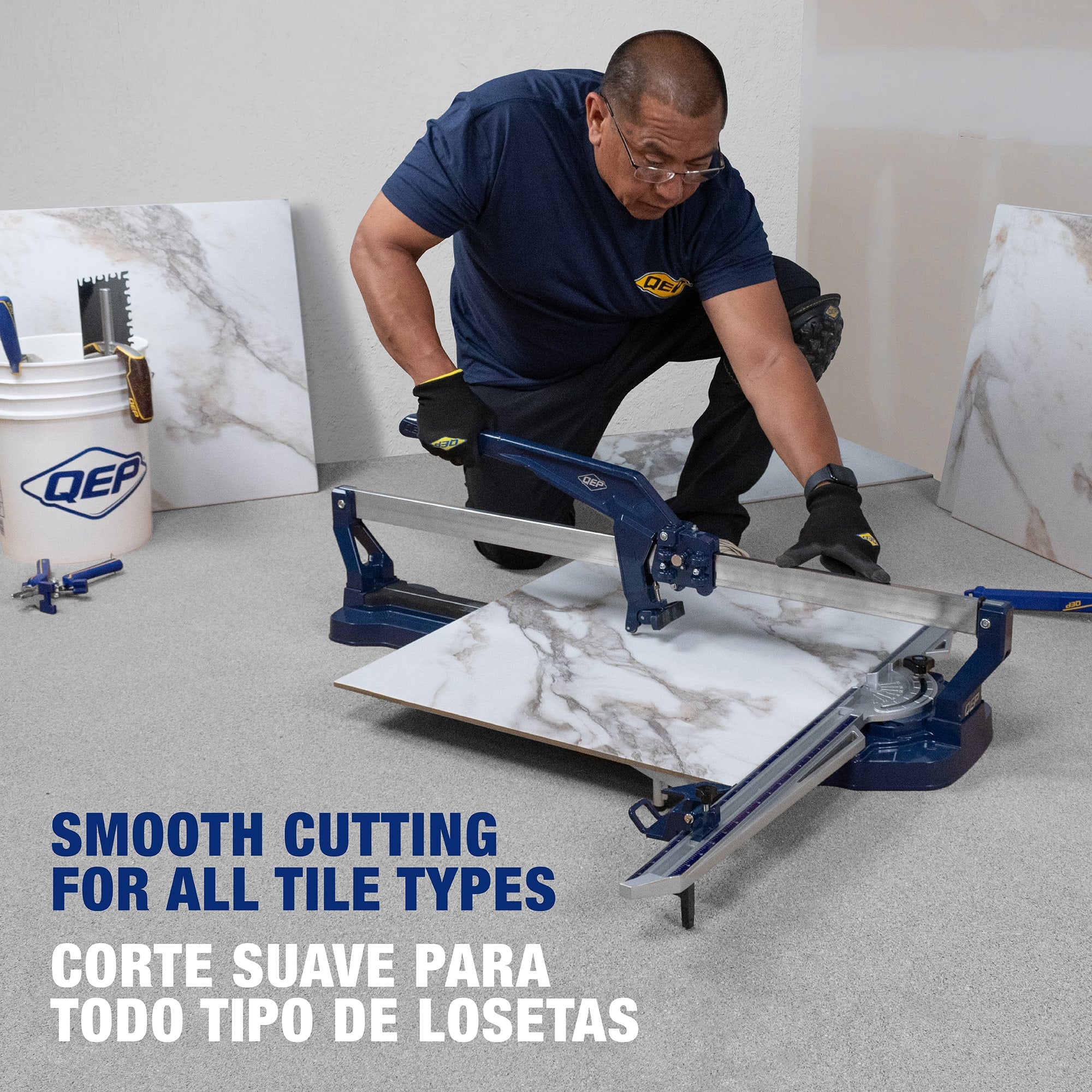

- Designed to deliver smooth cuts for all types of tile
- Smooth score chassis with 11 enclosed ball bearing rollers

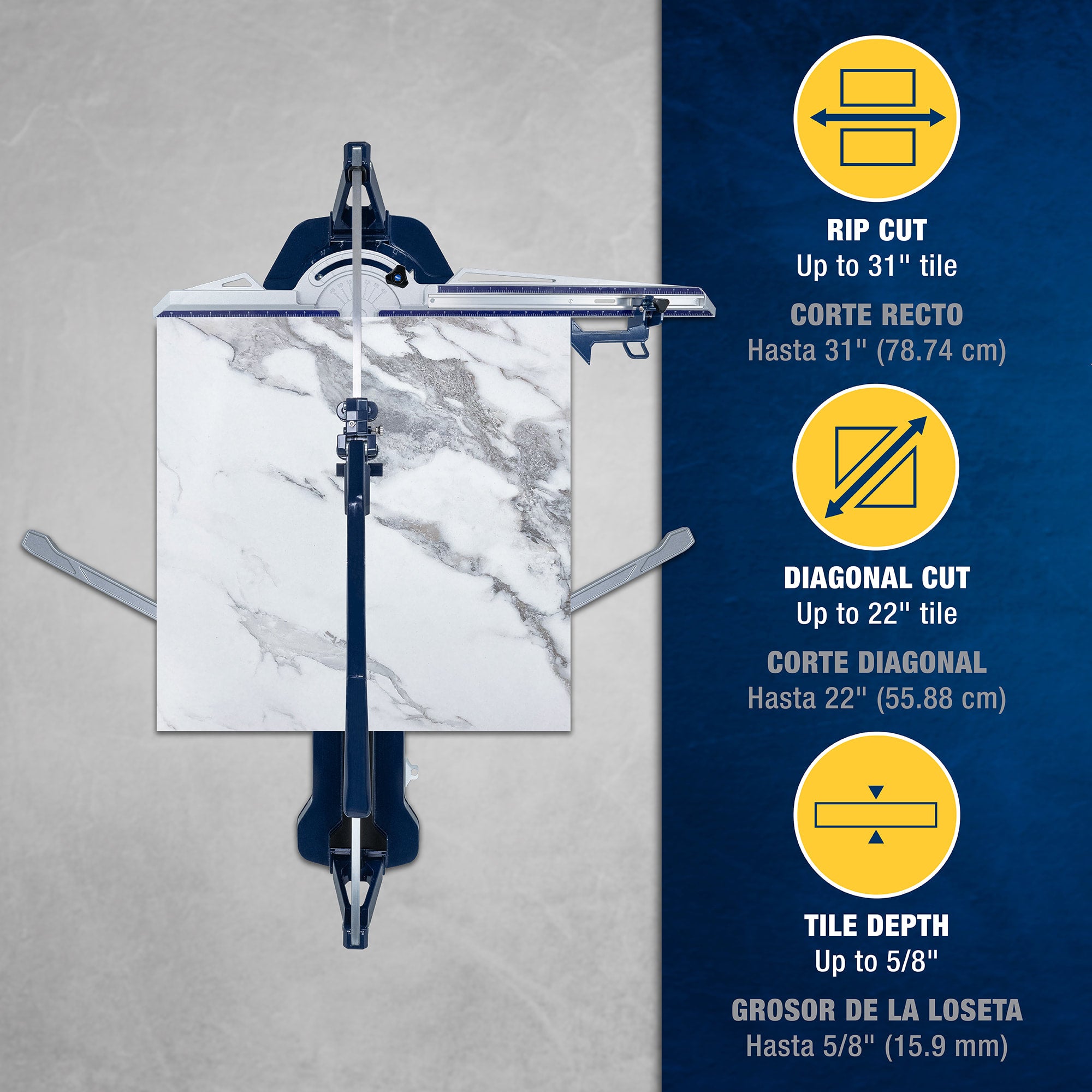

- Rip cuts ceramic and porcelain tile up to 31"
- Delivers diagonal cuts in ceramic and porcelain tile up to 22"and 5/8" deep
- Featuring clear rear view of the 7/8" scoring wheel to line up the cutting line on the tile
- Heavy-duty cast aluminum base with front steel spring plate and rear premium rubber

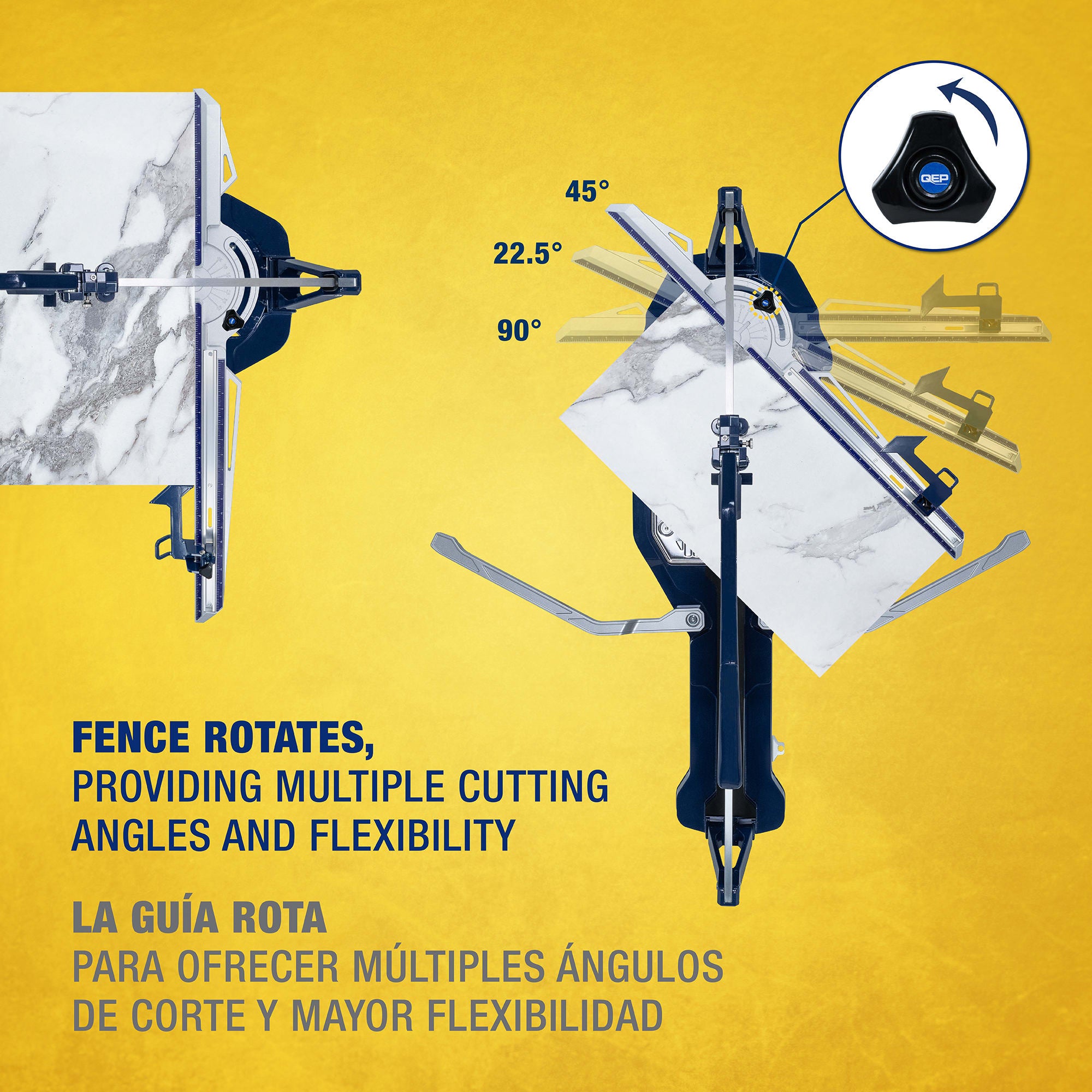

- Adjustable fence with positive stops at 22.5, 45, and 90 degrees
- Full-length 20" side wing support arms to eliminate tile sag
- 20" extended handle for maximum breaking power
- In-design magnet to hold the breaker out of the way when scoring tile
Warranty:
3 Years

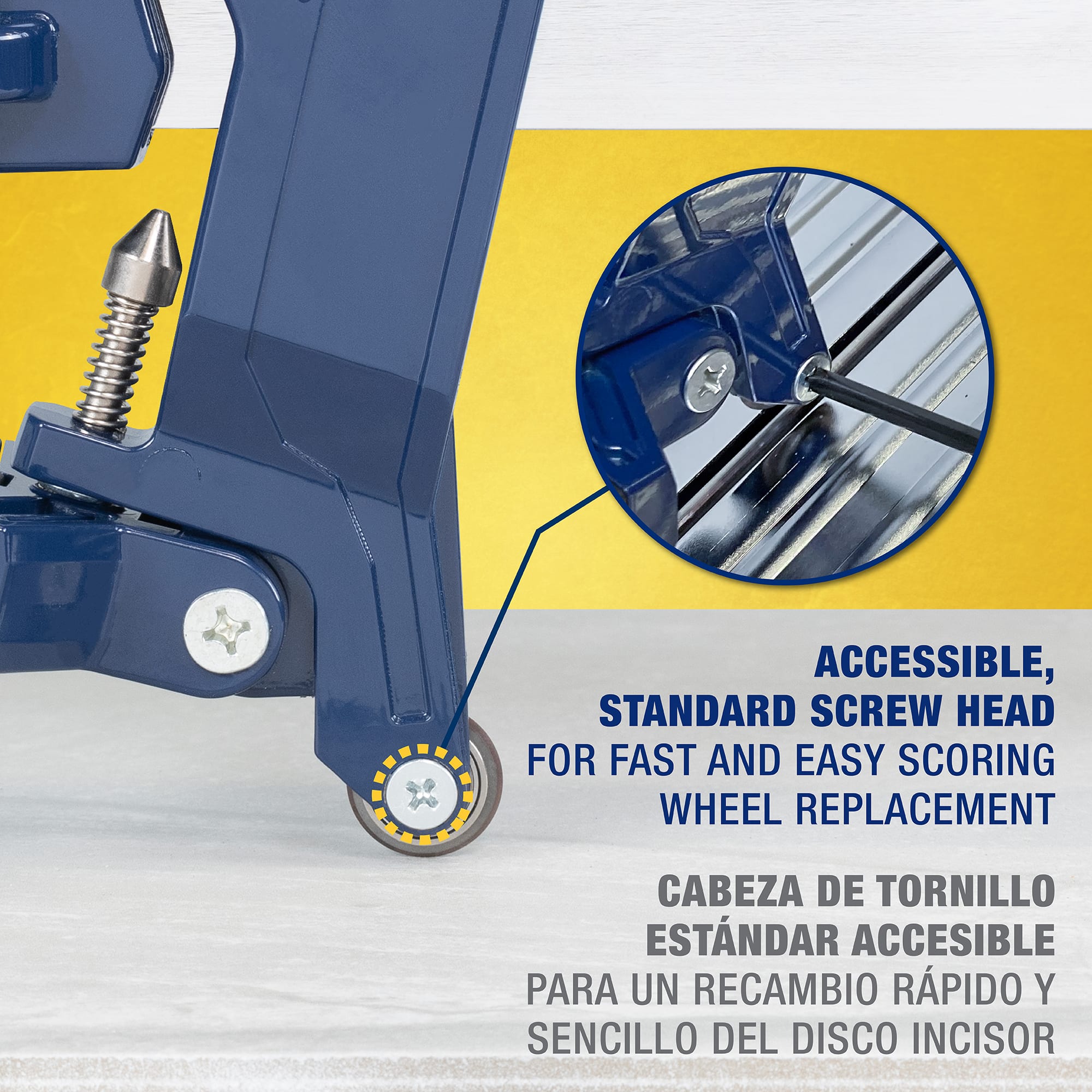

- 21131 KATANA 7/8 Cutting Wheel
Need help finding the right part, or looking for a part not sold online? Contact Us (hablamos Espanol) and we'll see what we can do.

31" KATANA SR-31 Single Rail Tile Cutter
Sale price$0.00
Details
Brand
QEP
SKU
10310
UPC
010306103107
For Use With (Material)
Primary Material
Aluminum
Features
Grip Features
Handle Grip
No
Case Included
No
Color
Guide Rail Style
Single: Solid Steel (Rectangular)
Handle Length
19.25" (49 cm)
Handle Material
Steel
Maximum Cut Depth
5/8" (15.88 mm)
Maximum Cut Size Diagonal
29.5" (75 cm)
Maximum Cut Size Rip
31" (78.74 cm)
Miter Cutting Angles
Support Arms
Yes
Wheels
No
Dimensions
Item Height (in)
Item Length (in)
49.0
Item Width (in)
14.0
Item Weight (lb)
34.14
Retail Packaging Height (in)
13.87
Retail Packaging Depth (in)
44.87
Retail Packaging Width (in)
14.5
Retail Packaging Weight (lb)
44.53
